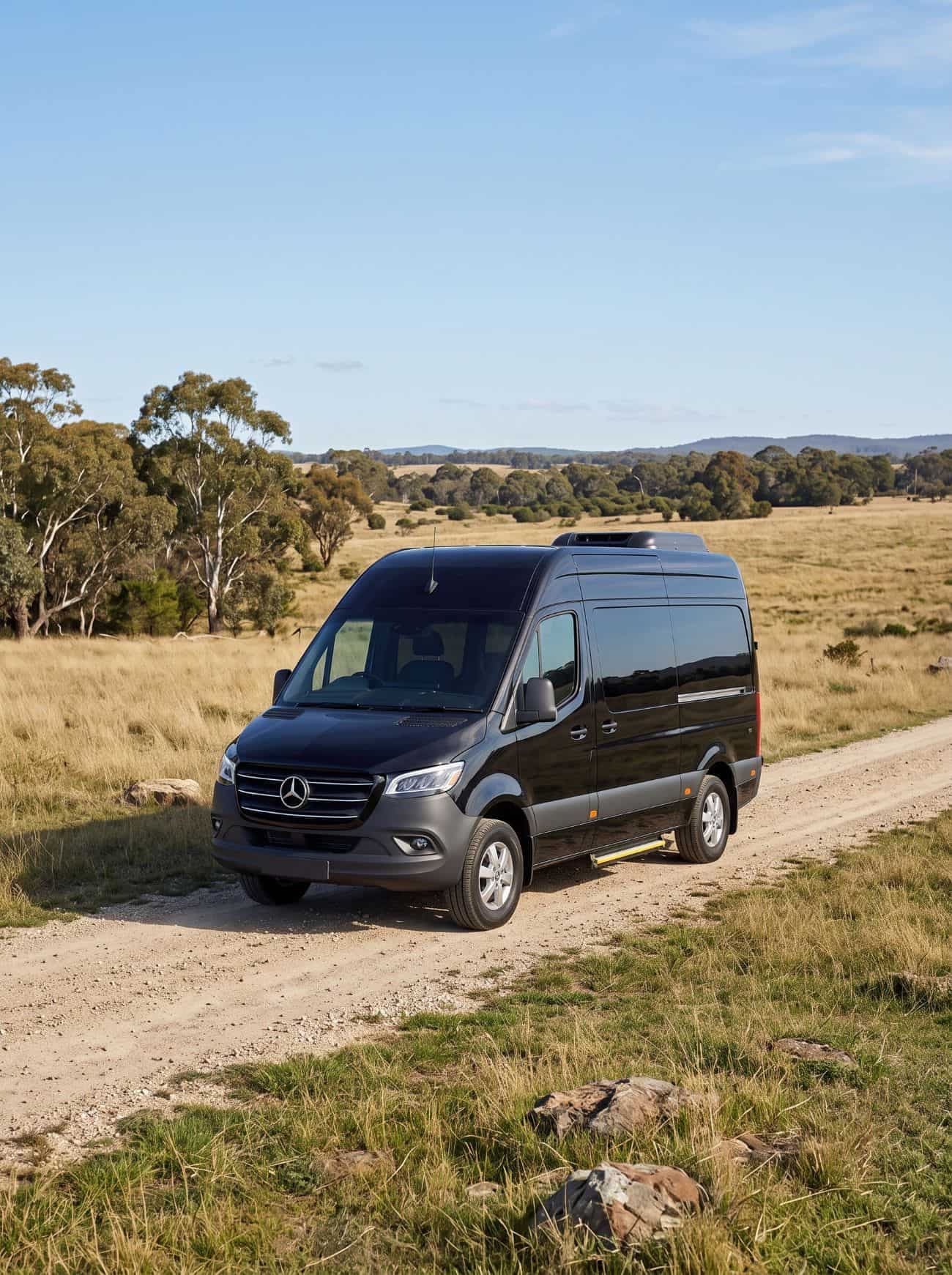

Mercedes-Benz
Sprinter
The base vehicle behind every RV Sales Australia Sprinter-based motorhome and campervan — factory chassis, factory warranty, built to your specification.
419 & 519
MWB / LWB
RWD or AWD
Driveline
9G-Tronic
Automatic
5 yr / 250,000 km
Warranty
Body style
The platform
A factory van, finished as a motorhome
The Sprinter panel van is the base vehicle for our campervan and motorhome conversions. It arrives from Mercedes-Benz as a complete, road-registered platform — cab, driveline, safety systems and warranty intact — and every conversion is built into that shell rather than onto a modified chassis.
Two series are offered. The 419 carries a 4,100 kg GVM; the 519 steps up to 5,000 kg (5,500 kg on the AWD MWB), with a 3,500 kg braked towing capacity on most variants. Both run the OM654 2.0-litre four-cylinder with the 9G-TRONIC automatic, in medium or long wheelbase, rear-wheel or all-wheel drive.
Standard equipment covers the driver-assistance suite — Active Distance Assist DISTRONIC, Active Brake Assist, Blind Spot Assist, 360-degree parking package — with MBUX multimedia, semi-automatic climate control and wireless Apple CarPlay and Android Auto. Factory paint colours and Mercedes-Benz options are chosen at order; both are listed further down this page.
519 LWB
5,000 kg GVM · 6,967 mm
419 MWB
On the road
Warranty pathway
Every build keeps the factory Mercedes-Benz warranty — 5 years or 250,000 km, with 24-hour roadside assistance and the national service network.
Technical
Specifications
Figures from the Mercedes-Benz Sprinter series and length options sheet. AWD variants carry the A4M option code.
140 kW
Max power
1,950 cc
OM654 engine
9G-TRONIC
Automatic
5,000 kg
GVM — 519
3,500 kg
Braked towing
| Specification | 419 MWB | 419 LWB | 519 MWB | 519 LWB |
|---|---|---|---|---|
| Designation | 419 MWB | 419 LWB | 519 MWB | 519 LWB |
| Driveline | RWD or AWD | RWD or AWD | RWD or AWD | RWD or AWD |
| Engine | OM654 | OM654 | OM654 | OM654 |
| Capacity | 1,950 cc | 1,950 cc | 1,950 cc | 1,950 cc |
| Max. power | 140 kW | 140 kW | 140 kW | 140 kW |
| Transmission | 9G-TRONIC AT | 9G-TRONIC AT | 9G-TRONIC AT | 9G-TRONIC AT |
| Length | 5,932 mm | 6,967 mm | 5,932 mm | 6,967 mm |
| Wheelbase | 3,665 mm | 4,325 mm | 3,665 mm | 4,325 mm |
| Rear overhang | 1,402 mm | 1,777 mm | 1,402 mm | 1,777 mm |
| GVM | 4,100 kg | 4,100 kg | 5,000 – 5,500 kg | 4,490 – 5,000 kg |
| GCM | 6,100 kg | 6,100 kg | 6,490 – 7,000 kg | 6,490 – 7,000 kg |
| Towing | 2,000 / 750 / 200 kg | 2,000 / 750 / 200 kg | 3,241 – 3,500 / 750 / 140 kg | 3,500 / 750 / 140 kg |
| Axle ratio | 3.923 | 3.923 | 3.923 or 4.727 | 4.727 |
| Fuel capacity | 93 L | 93 L | 93 L | 93 L |
| Turning circle (curb) | 12.4 – 13.5 m | 14.4 – 15.7 m | 12.3 – 13.5 m | 14.3 – 15.7 m |
Towing figures are braked / unbraked / ball weight. GVM and GCM are factory certifications and vary by variant and axle ratio.
Factory fitted
Standard equipment
Safety
- Active Distance Assist DISTRONIC
- Active Brake Assist
- Blind Spot Assist
- Active Lane Keeping Assist
- JB6 parking package with 360° camera
- ADAPTIVE ESP9i stability program
Interior
- MBUX multimedia with 10.25" touchscreen
- Wireless Apple CarPlay and Android Auto
- TEMPMATIC semi-automatic air conditioning
- Multifunction steering wheel with touchpads
- Keyless start with paddle shifters
- Comfort overhead panel with reading lights
Exterior & load
- Electrically folding heated mirrors
- Sliding door, left-hand side
- 180° rear barn doors
- Front and rear mud flaps
- Rear doorstep
- Trailer socket electrics
Technical & warranty
- Heavy-duty battery
- 250 A / 14 V alternator
- PSM electrical pre-installation
- 93 L fuel · 22 L AdBlue
- ECO start/stop with HOLD function
- 5 years / 250,000 km warranty
Exterior colour selection
Colour options
Colours below reflect the current Mercedes-Benz Sprinter factory range available in Australia. Swatches are a visual guide only and may not exactly match the final paint finish — please confirm your selection against a physical paint sample or the vehicle in person before ordering.
Standard colours— no additional cost
Arctic White
Jet Black
Brilliant Blue
Steel Blue
Blue Grey
Stone Grey
Pebble Grey
Jupiter Red
Traffic Red
Broom Yellow
Metallic colours— factory surcharge applies
Obsidian Black metallic
Tenorite Grey metallic
Selenite Grey metallic
High-Tech Silver metallic
Cavansite Blue metallic
Colour availability can vary by build slot and is subject to Mercedes-Benz confirmation at time of order. Metallic pricing is confirmed on your quote.
Ordered at build
Factory options
Mercedes-Benz option codes available on a Sprinter build. Informational only — pricing is quoted per order.
Included in every build
All RV Sales Australia Sprinter builds carry the N23Z Campervan Package — upgraded front axle load and stabilisation, comfort seat pack with swivel function, parameterisable special module (PSM), ARTICO man-made leather seats, hinged dashboard lids, sliding-door entrance handle and full rear-door panelling — plus KL1 fuel gauge sensor with auxiliary heater connection, F84 digital inside rearview mirror and the N33Z electric seat pack.
All-wheel drive
Torque on demand. A 519 automatically adds XL4.
Off-road operation
Off-road driving programme. Requires A4M.
Electric sliding door
Left-hand side, electrically operated.
Sliding door closing assist
Powered assist for the left-hand sliding door.
Gloss black wheels
Factory painted gloss black wheels.
LED High Performance headlamps
419 only.
280 A alternator
14 V / 280 A output for house-system charging.
Navigation
Factory navigation including seven years of map updates.
Wireless charging tray
Smartphone tray with inductive charging.
Winter package
Heated driver and passenger seats, wet wiper system.
Roof rack rails
Mounting rails for a factory roof rack.
Fog lights & Highbeam Assist
Front fog lights and automatic high beam.
Incorrect fuelling protection
Prevents petrol misfuelling.
Two additional master keys
Four keys total.
Metallic paint
Any metallic finish from the colour list above. Surcharge applies.
Gallery
The Sprinter
Vehicle only. Conversion interiors sit on the model pages.

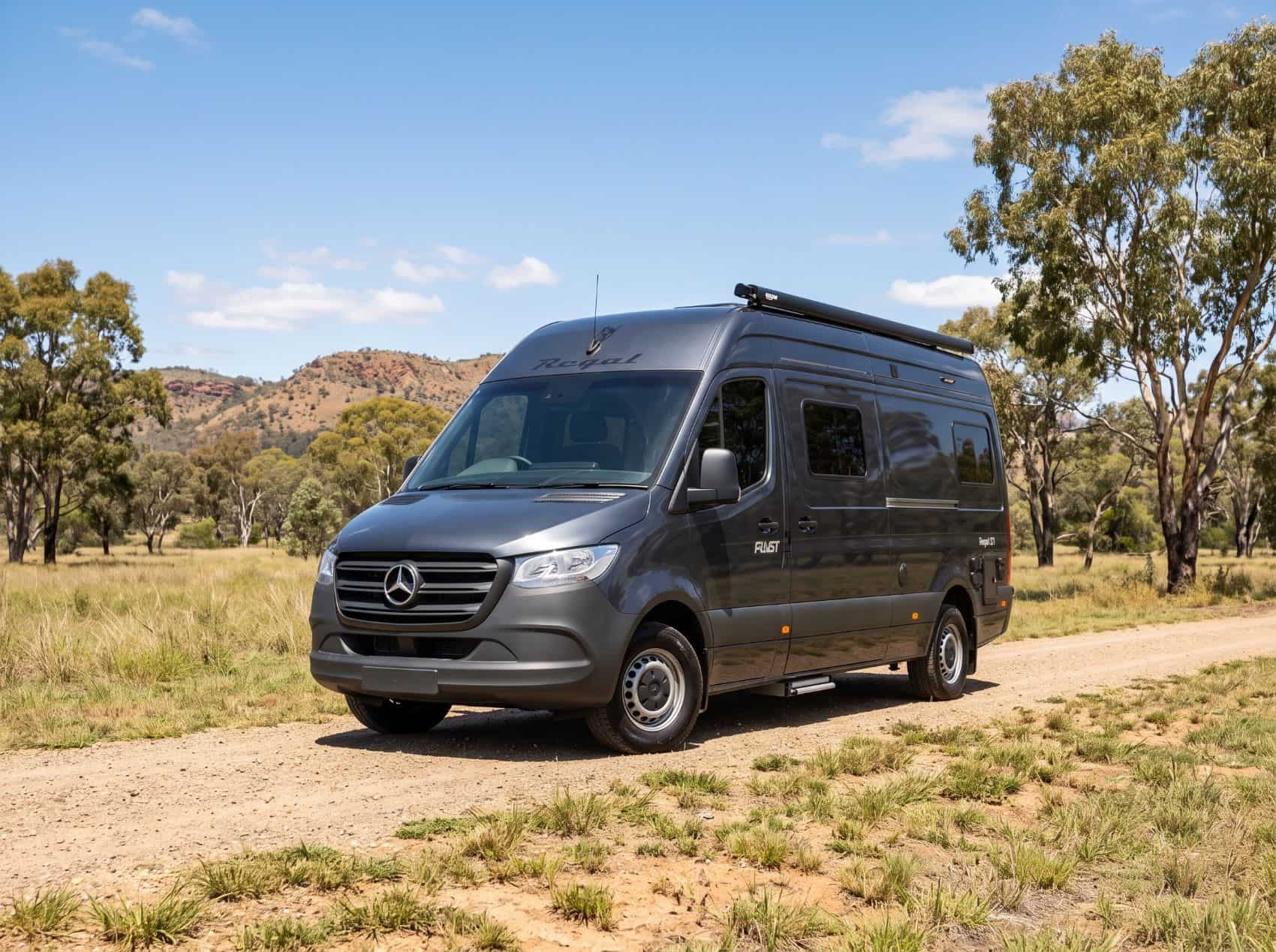

Front three-quarter
Rear three-quarter

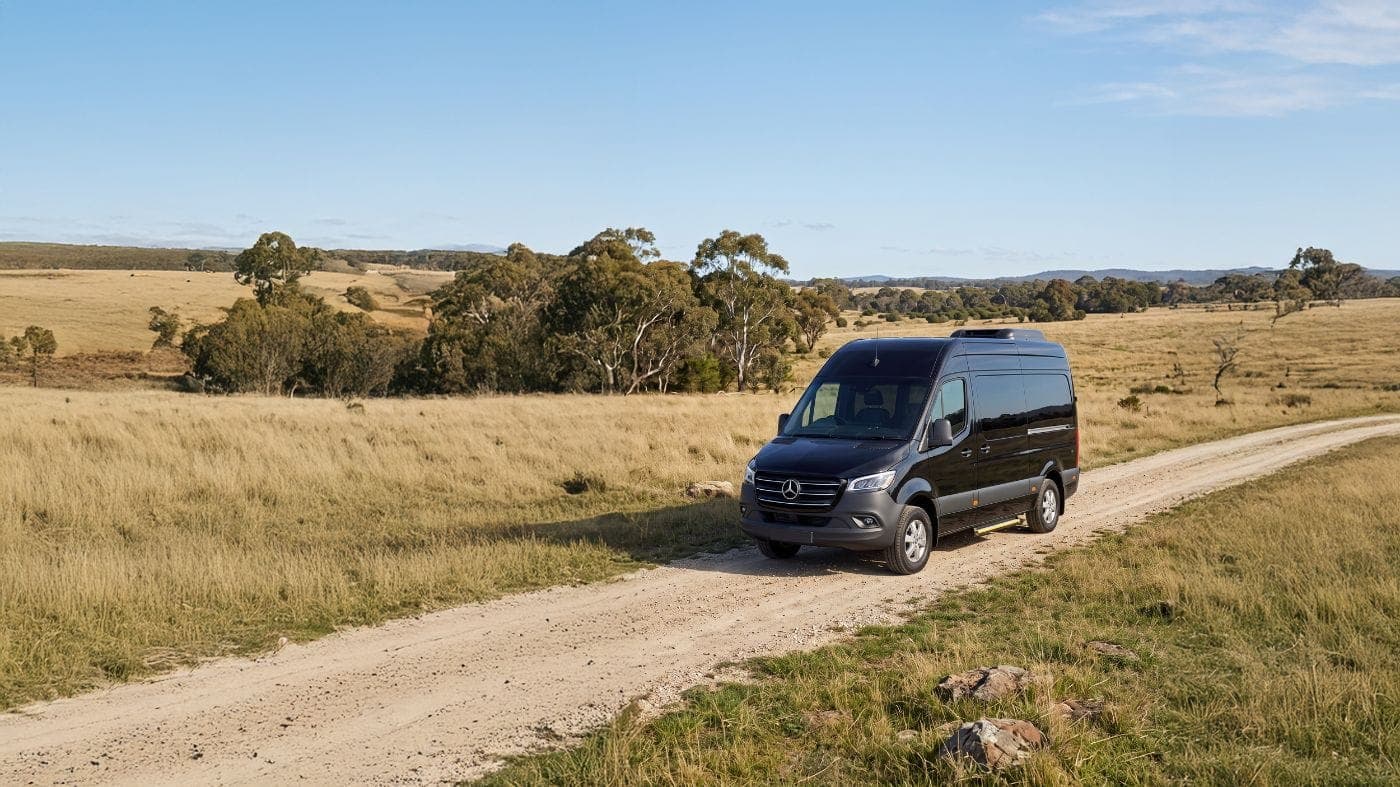

519 LWB

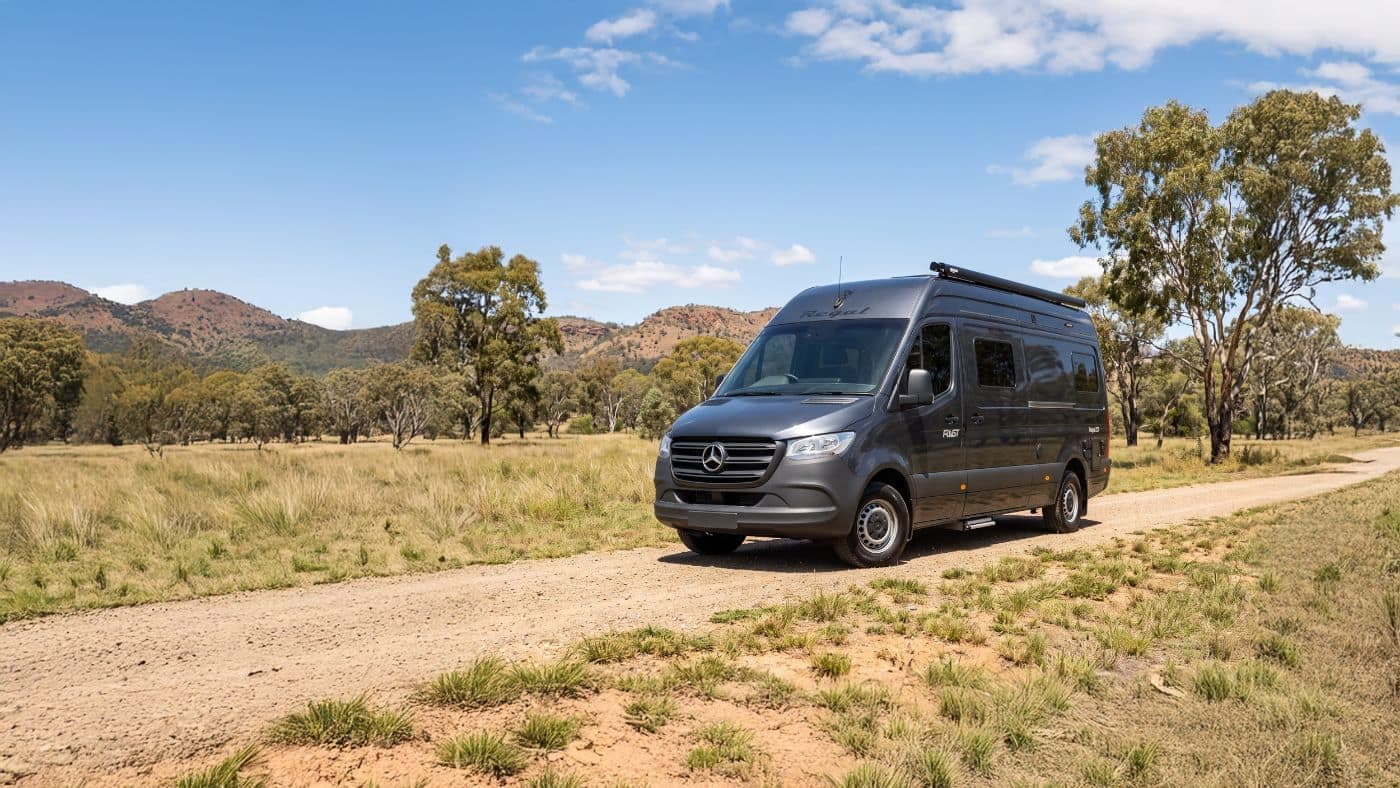

419 MWB
Enquiry
Talk to us about a Sprinter build
Tell us the series, wheelbase and driveline you have in mind — or just what you want the van to do — and we will come back with availability, build slots and pricing.
